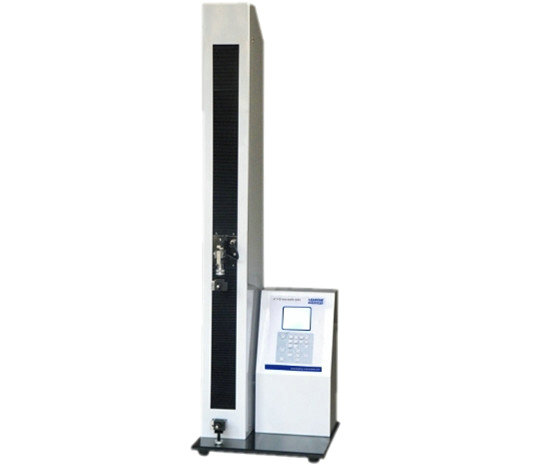

ATT-03 Auto Tensile Tester




ATT-03 Auto Tensile Tester is applicable in the test of physical mechanical properties of plastic films, laminated

materials, flexible packaging materials, plastic flexible tube, adhesives, adhesive tapes, pressure sensitive tape,

adhesive bandage (plaster), release paper, protective film, flip off cap, foil, diaphragm, back sheet, non-woven,

rubber and paper fiber, etc. It can perform the test items of tensile, peeling, deformation, tearing, heat seal,

adhesive, puncture force, open force, low-speed unwinding force and unsnapping force, etc.


 >  CHARACTERISTICS

      * Minicomputer control; LCD displays data, results and curves;

      * Manu interface, PVC operation board;

      * Standard measurement units;

      * Selectable two measuring ranges;

      * 1000mmsuper long stroke;

      * 7 independent testing programs, including ensile, peeling, tearing and heat seal, etc.;

      * Multi-functions of parameter set, printing, inquiry, clear and calibration, etc.;

      * Analyze test results of batch samples,  puts out Max., Min., and average data;

      * Group sample statistical analysis and calculation, historical data comparison;

      * Computer data storage, multi-means inquiry;

      * Memory function when power failure, overload protection, position limit protection and auto return;

      * RS232 interface;



 >  TECHNICAL INDEXES

      Specification: 500N or 50N

      Accuracy: ±0.5%of reading force

      Test Speed: 50  100  150  200  250  300 500mm/min

      Test Width: 30mm(standard clamp)

                         50mm(optional)

      Stroke:1000mm

      Dimensions:450mm(L) x450mm(B) x1410mm(H)

      Power: AC 220V 50Hz

      Net weight: 68kg



 >  STANDARDS

      ISO 37, JIS P8113, ASTM E4, ASTM D828, ASTM D882,

      ASTM D1938, ASTM D3330, ASTM F88, ASTM F904



 >  CONFIGURATION

      Standard:mainframe, plane clamp, software.

      Optional:standard roller, test panels, sampling cutter, floating roller clamp, unwinding tools for tape roller,

                     non-standard clamps.

Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.
