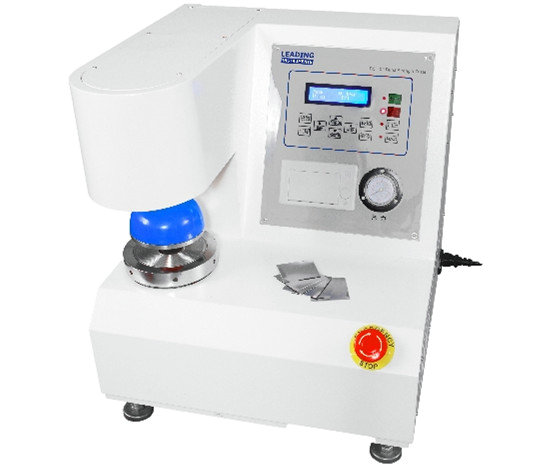

BST-02 Auto Burst Strengh Tester

Tester for Cardboard, is widely used in testing the burst strength of packaging materials such as ordinary paper, corrugated paper,

toilet paper, wrappinp paper etc. Also it can test the leather, cloth,  packaging film etc.

And it can effectively inspect the quality of the products.


      * Micro-computer control, LCD display;

      * Computer control systerm, open architecture, highly automatic program

      * High accuracy, and convenience to operate.

      * Automatic measurement, Intelligent calculating functions.

      * Equipped with micro-printer, convenient to get the test result.

      * Mechatronics modern design concept, hydraulic system, compact structure, nice appearance, easy maintenance.

      * Self-developed software, having automatical measure, statistics, print test results, data save function.

      * Mini-printer;

      * RS232 port;


      Capacity High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)

      Units(changeable) Kpa, psi, kg/cm^2

      Material of the Ring Stainless Steel SUS304

      Accuracy ± 0.5%

      Pressure Range 250~5600kpa

      Specimen Clamping Force >690kpa

      Oil  85% Glycerin; 15% Distilled Water

      Outside Dimension(L×W×H)  445×425×525 mm

      Weight Approx. 70 kg

      Power  AC220± 10%, 50 Hz

      Sensing method Pressure Converter

      Motor  Anti-vibration Motor 1/8 HP

     Opening in Upper Clamp  31.5 ± 0.05 mm Diameter

     Opening in Lower Clamp  31.5 ± 0.05 mm Diameter




      Standard Configuration  Rubber Membrane 5 piece, Spanner 1 set, Correction Shim 10 sheets

Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.
