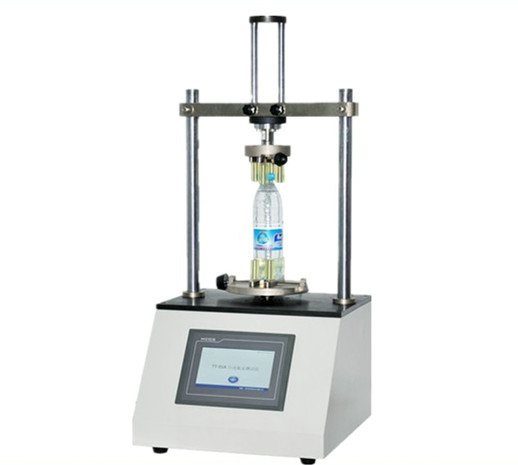

DTG-20N Digital Torque Tester

DTG-20N Digital torque tester is applicable in open force and lock force tests of cups of bottle,

suction and flexible tube packages. The open and lock forces of bottle caps are important online

or offline technical parameters of production, and will influence the transportation and consumption

of the products. DTG-20N Digital Torque Tester is the professional instrument for the open force and

lock force measurement of bottle products. It’s stable and precise, a necessity of the manufacturing process.


      * Micro-computer control, LCD display, PVC operation board;

      * Automatic peak value keeping;

      * Two modes for lock force and open force;

      * Standard testing units;

      * Auto zero, error alert, overload protection;

      * Memory while power failure;

      * Mini-printer;

      * RS232 interface;


      Specifications: 20Nm (standard)  40Nm (optional)

      Accuracy: 0.001Nm

      Resolution: 0.001 Nm

      Clamp Range: Φ5-~Φ170mm(diameter)

      Power: AC 220V 50Hz

      Net Weight:19kg



      ASTM D 2063, ASTM D 3198, ASTM D 3474


      Standard: Mainframe, mini-printer

      Optional: Software, communication cable

Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.
